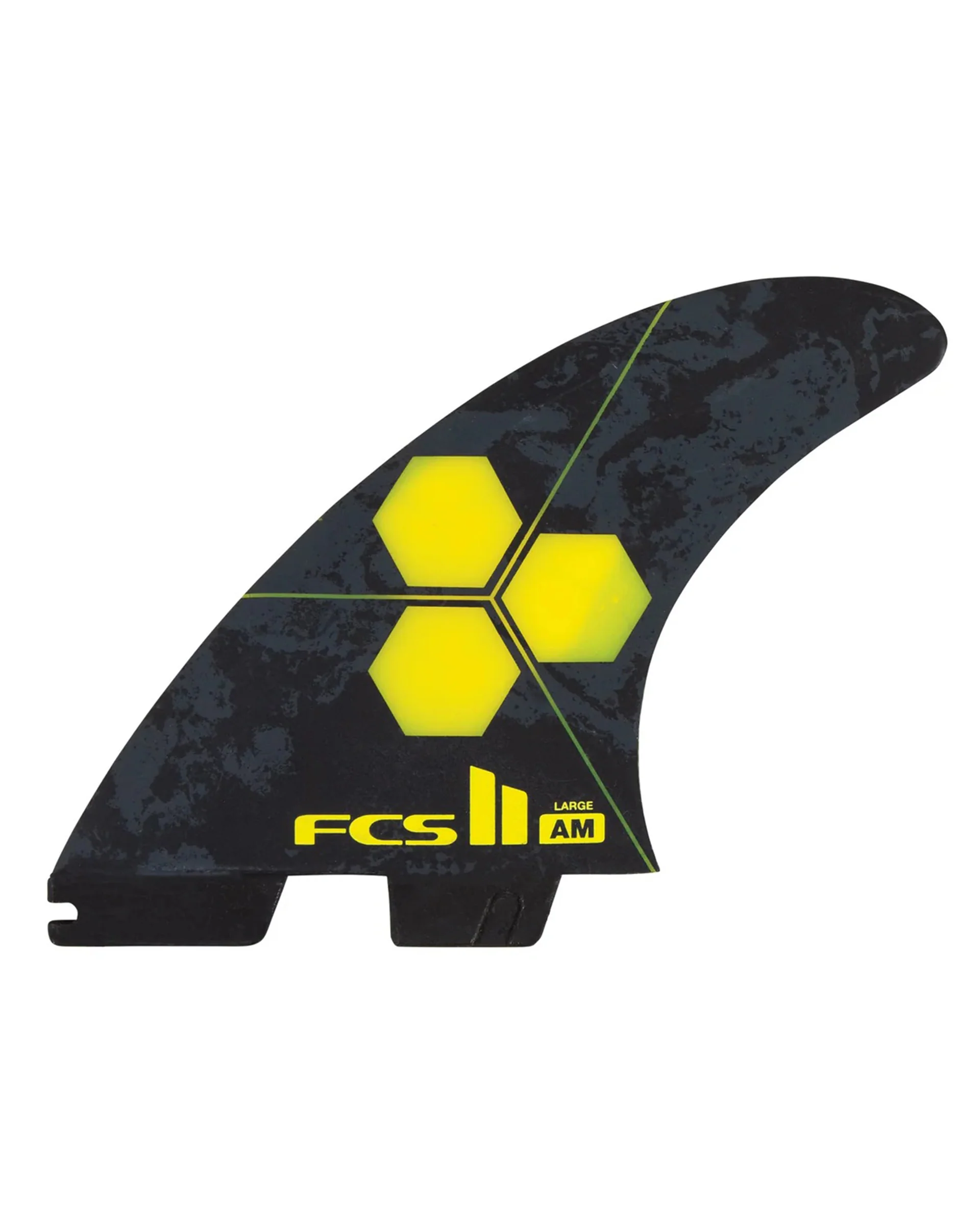

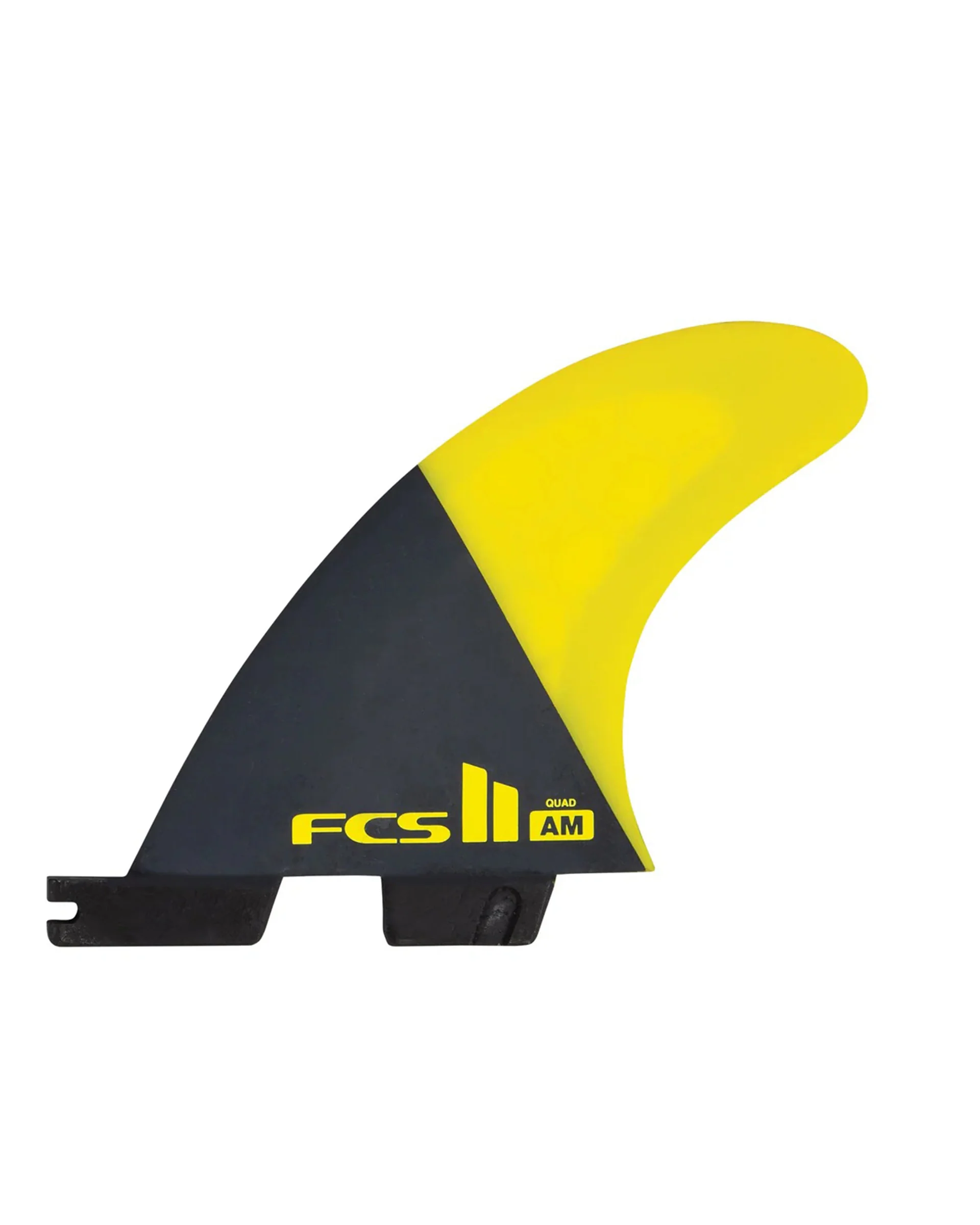

FCS II Al Merrick Tri-Quad Fins

Overview

• Al Merrick's template is designed for radical, progressive surfing.
• The raked side fins produce exceptional speed and drive, while the smaller centre fin on the medium and large template offer quick release through turns.
• Tri/Quad (5 fin) set

Ideal Conditions

• Hollow steep waves, punchy beach breaks.

Board Types

• Designed to fit the FCS II Fin System.
• Performance boards with deep concaves and moderate-to-extreme rocker.

Fin Family

• Carver: Find Power. Powerful, drawn-out turns with added hold.

Material

Performance Core

Performance Core (PC) fins are made using a multi-layered resin transfer molding process. The flex pattern in PC fins extends progressively from the base through to the tip, helping the surfer to maintain drive and hold through a turn. This versatile fin material is light, and can be used in a variety of different conditions.

Size

LARGE (75Kg - 90Kg / 165 - 200 Lbs)

Fin

Base (inches)

Base (mm)

Depth (inches)

Depth (mm)

Area (inches)

Area  (mm)

Sweep Deg°

Foil

LRG (side)	4.61	117.1	4.69	119.0	15.63	10083	36.3°	Flat
LRG (Ctr)	4.47	113.5	4.45	113.0	14.68	9469	38.6°	50/50
LRG (Q-Rear)	4.09	104	4.26	108	12.63	8150	32.4°	80/20
